Electronic Weighbridges


Back to Product Portfolio

Eastern Weighing Systems manufactures, supplies and services weighbridges across a range of capacities.


The Shift & Weigh – Portable Weighbridge is our high value product which is very popular with industries. The portable weighbridge has the advantage of not needing a mandatory concrete foundation. It is a 5 module package which can be dismantled and re-assembled, providing it the portability factor.


Weighbridge Type Capacity Range
Standard Pit type From 5 Ton to 200 Ton
Surface mounted From 5 Ton to 200 Ton
Shift & Weigh – Portable type From 30 Ton to 80 Ton

Capacity Platform Size Portable PIT Type Surface Mounted
5000 Kg to 20000 Kg/5 Kg Custom Size
30000 Kg/10 Kg 7.5 M x 3 M
30000 Kg/10 Kg 9 M x 3 M
40000 Kg/10 Kg 7.5 M x 3 M
40000 Kg/10 Kg 9 M x 3 M
50000 Kg/10 Kg 7.5 M x 3 M
50000 Kg/10 Kg 9 M x 3 M
60000 Kg/10 Kg 7.5 M x 3 M
60000 Kg/10 Kg 9 M x 3 M
80000 Kg/10 Kg 7.5 M x 3 M
80000 Kg/10 Kg 9 M x 3 M
80000 Kg/10 Kg 16 M x 3 M
80000 Kg/10 Kg 18 M x 3 M
80000 Kg/20 Kg 16 M x 3 M
80000 Kg/20 Kg 18 M x 3 M
100000 Kg/10 Kg 16 M x 3 M
100000 Kg/10 Kg 18 M x 3 M
100000 Kg/20 Kg 16 M x 3 M
100000 Kg/20 Kg 18 M x 3 M

Eastern Weighing System also provides weighbridge automation services to ensure minimal human error, cumulative report generation and more.
Please see our Automation   page for details

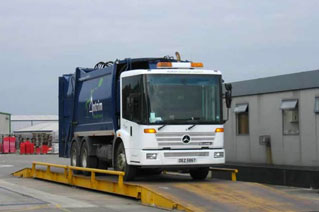

Portable Weighbridge

Standard Pit type Weighbridge

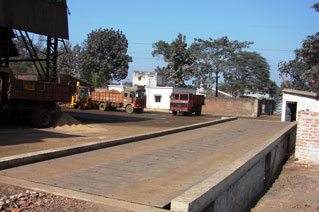

Surface Mounted Weighbridge
